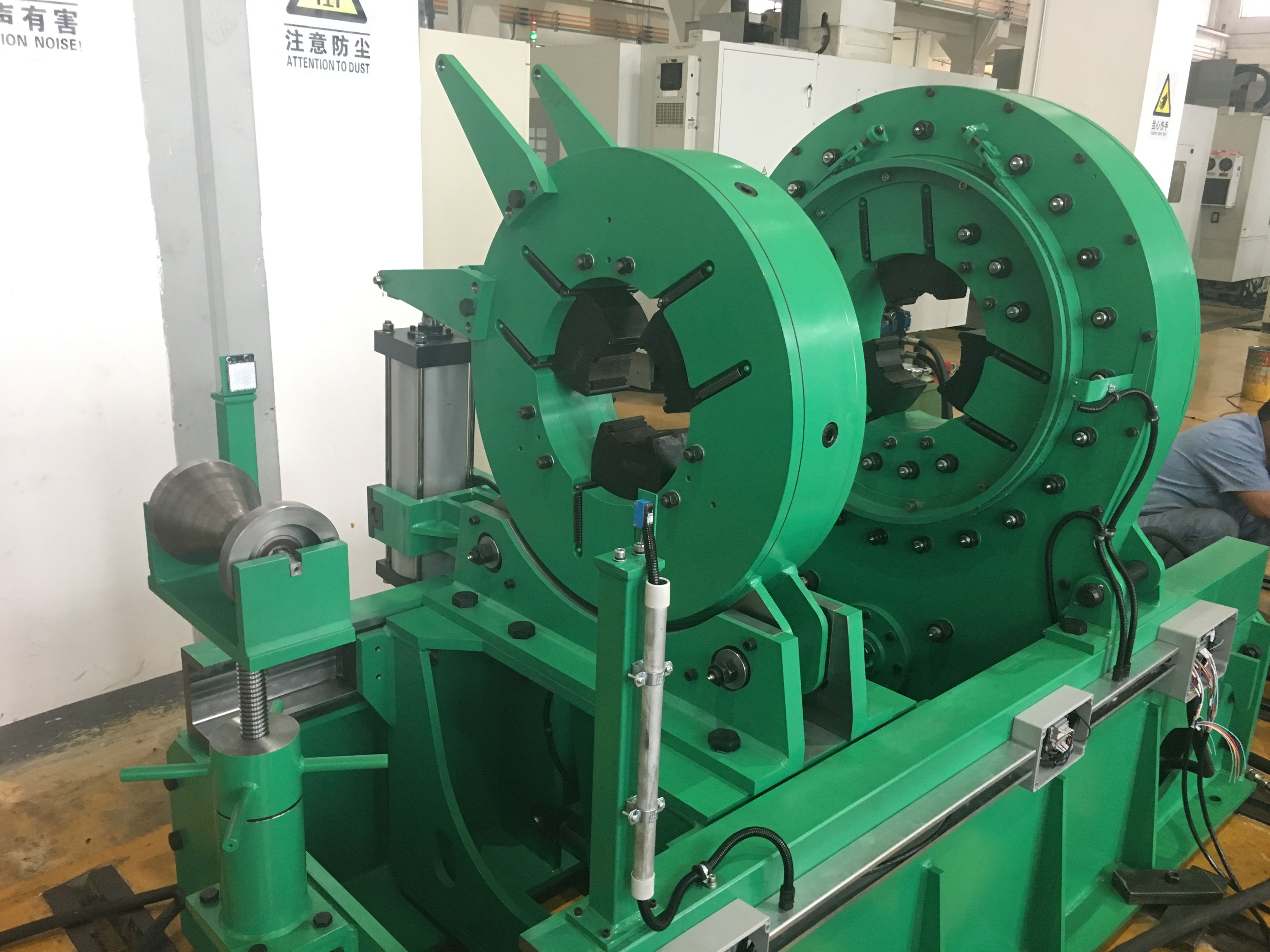

油套管接箍拧接机Oil Casing Coupling Make-up machine

CM系列石油油套管接箍拧接机主要用于石油油套管厂对油套管与接箍的上扣和卸扣工作，也可以用在一些井下工具的拆卸和组装上。主要特点如下：CM series oil casing coupling make-up machine is mainly used in oil casing plant to oil casing and hoop of the make-up and break-out work, also can be used in some downhole tools disassembly and assembly. The main features are as follows:
1、CM系列接箍拧接机系统简单，操作方便灵活。CM series coupling make-up machine system is simple, easy to operate and flexible.
2、钳牙与接箍为面接触，夹紧点多，牙痕符合API标准，不会损伤管体或接箍，且随钳头扭矩的变化，夹紧力自动成正比地变化，保证夹紧可靠，不打滑。主钳上设有测量转动圈数的转速传感器，以便采集转速和圈数信号。转速设有高低两档，以满足不同扭矩和转速的需要。The clamp teeth are surface contact with the coupling with many clamping points, the tooth mark conforms to the API standard, will not damage the tube body or the coupling, and with the change of the torque of the clamp head, the clamping force automatically changes proportionally to ensure that the clamping is reliable and does not slip. The main clamp is provided with a speed sensor to measure the number of rotating circles in order to collect the speed and the number of circles signal. The rotational speed is provided with high and low two gears to meet the needs of different torque and rotational speed.
3、颚板、钳牙更换方便。Easy to replace jaw clamp plate and clamp teeth.
4、在背钳上设有拉力传感器，用来测量扭矩，准确度很高，误差在±1.5%以内。控制系统高速读取扭矩值、拧接圈数与设定值进行对比，自动控制拧接机的动作，到达设定值时自动停止上扣。A pull force sensor is arranged on the back clamp to measure the torque, the accuracy is very high, and the error is within ±1.5%. The control system reads the torque value at high speed, the number of screwing coils is compared with the set value, and the action of the twisting machine is automatically controlled, and the screwing is automatically stopped when the set value is reached.
7、系统的控制方案采用上位机（工控机）管理，下位机（PLC）检测、控制，操作面板上设有手动/自动按钮，可方便切换。The control scheme of the system adopts the upper computer (industrial control computer) management, the lower computer (PLC) detection, control, and the manual / automatic button on the operation panel, which can be easily switched.
8、可配备全自动浮动预拧机，与拧接机和辅机配合，可完全替代国外同类产品。Can be equipped with coupling make up machine, with make up machine and auxiliary machine, can completely replace foreign similar products.
